Out Of Stock

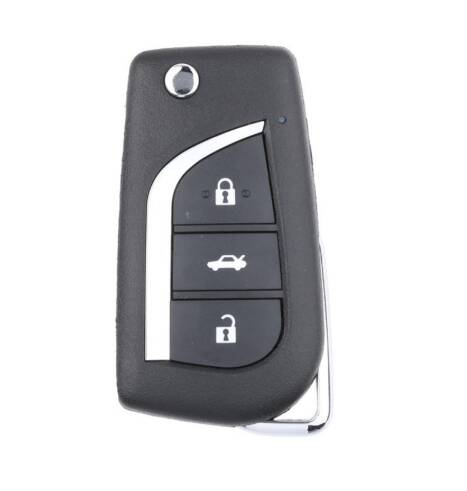

Notify me when its in stockThe Xhorse XKTO20EN 2nd Generation Universal Wired Remote Key is a professional-grade Toyota-style 3-button remote, designed for use with Xhorse VVDI Key Tool and VVDI2 systems.
This second-generation remote features a red PCB and integrates the latest XM5118 transceiver, delivering higher efficiency, improved durability, and significantly reduced power consumption.
Although classified as a wired remote, it fully supports wireless programming, giving locksmiths flexibility and a faster, cable-free programming experience.
🔧 Features
System Type: Wired Remote with Wireless Programming
Remote Type: Toyota Universal Remote
Buttons: 3 Buttons
Manufacturer: Xhorse
Product Model: XKTO20EN (2nd Generation)
PCB Version: Red PCB (Gen2)
Transceiver: XM5118 (Latest Generation)
Programming Modes: Wired & Wireless
Programming Cable Required: No (Wireless Supported)
Power Consumption: Ultra-Low
Anti-Static Protection: Enhanced
Condition: Brand New
⚙️ Technical Overview
The XK Series Wired Remote V2 introduces advanced improvements over Gen1:
Latest XM5118 transceiver for improved performance
Wireless programming support despite wired structure
75% reduction in static current consumption
30% lower operating current (Xhorse lab tested)
High durability through enhanced anti-static protection
Anti-static test results:
4.0kV contact discharge (bare PCB)
20.0kV contact discharge (enclosed device)
This design ensures stable operation and extended battery life.
🛠️ Programming & Usage Instructions
Insert the battery into the remote.
Select Toyota remote type in VVDI software.
Choose wired or wireless programming mode.
Program using VVDI Key Tool, VVDI2, or compatible Xhorse device.
Verify lock, unlock, and trunk button functions after programming.
⚠️ Note:
Even though this is a wired remote, wireless programming is fully supported.
🚗 Vehicle Compatibility
Brand Type: Toyota
Remote Style: Universal Toyota
Compatibility depends on:
Vehicle immobilizer system
Transponder configuration
VVDI software version
