Starting from model year 2018, FCA vehicles (Chrysler, Dodge, Jeep, RAM, Fiat, Alfa Romeo) are equipped with a Secure Gateway Module (SGW) designed to prevent unauthorized CAN bus access and remote hacking through cellular networks.

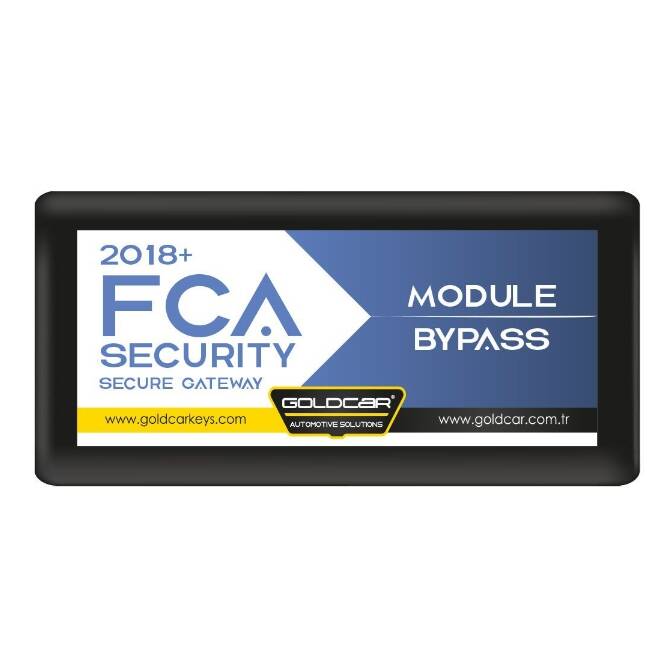

The FCA SGW Bypass Module temporarily unlocks full diagnostic and programming communication, allowing service tools such as OBD Genie to enable features, perform coding, or access restricted ECUs.

This bypass is NOT a performance tuner—it simply provides temporary access during programming. After completing diagnostics or programming, the original SGW plugs are reconnected.

---

🔧 Features

• System Type: FCA Secure Gateway Bypass Module

• Purpose: Temporarily bypasses SGW to allow diagnostic access

• Compatibility: Chrysler, Dodge, Jeep, RAM, Fiat, Alfa Romeo 2018+

• Installation: Plug & play – connect in place of SGW module

• Programming: No configuration required

• LED Indicator: Confirms successful communication

• Usage: Only for diagnostic/programming sessions

• Condition: Brand New

---

⚙️ Technical Overview

FCA introduced Secure Gateway Modules to:

• Protect CAN bus communication

• Prevent unauthorized remote access

• Restrict third-party scan tools from writing to ECUs

Without bypassing the SGW, many diagnostic tools cannot:

• Enable or disable vehicle features

• Perform coding/adaptations

• Access advanced ECU data

• Complete OBD-based retrofits

This bypass module restores full bidirectional communication by replacing the SGW during service. After programming is complete, reconnect the original SGW unit.

---

🛠️ Installation Instructions

1. Locate the SGW module in your vehicle (varies by model).

2. Unplug the two OEM connectors from the SGW.

3. Insert both plugs directly into the FCA bypass module.

4. Perform your diagnostic or programming operation.

5. Once the green LED confirms success, disconnect the bypass.

6. Reinstall the original SGW module exactly as before.

⚠️ Important:
This bypass must only be used temporarily during programming. Do not drive with the bypass installed.

---

🚗 Vehicle Compatibility

Fully compatible with FCA vehicles equipped with SGW modules:

Alfa Romeo

• Giulia (2018+)

• Stelvio (2018+)

Chrysler

• 300 (2018–2021)

• Pacifica (2018–2021)

Dodge

• Charger (2018–2021)

• Challenger (2018–2021)

• Durango (2018–2021)

• Journey (2018–2021)

Fiat

• 500L (2018+)

• 500X (2018+)

Jeep

• Cherokee (2018–2021)

• Compass (2018–2021)

• Grand Cherokee (2018–2021)

• Grand Commander (2019+)

• Renegade (2018+)

• Wrangler JL (2018–2021)

• Gladiator (2020–2021)

RAM

• 1500 (2018–2021)

• 2500/3500 Heavy Duty (2018–2021)

• ProMaster City (2018+)

• ProMaster Full-Size (2020+)

---

🔍 SGW Module Locations (Typical Models)

• Jeep Cherokee / Grand Cherokee

• Jeep Compass / Wrangler JL

• Dodge Challenger / Charger / Durango / Journey

• Chrysler 300 / Pacifica

• RAM Trucks (2018–2019)
