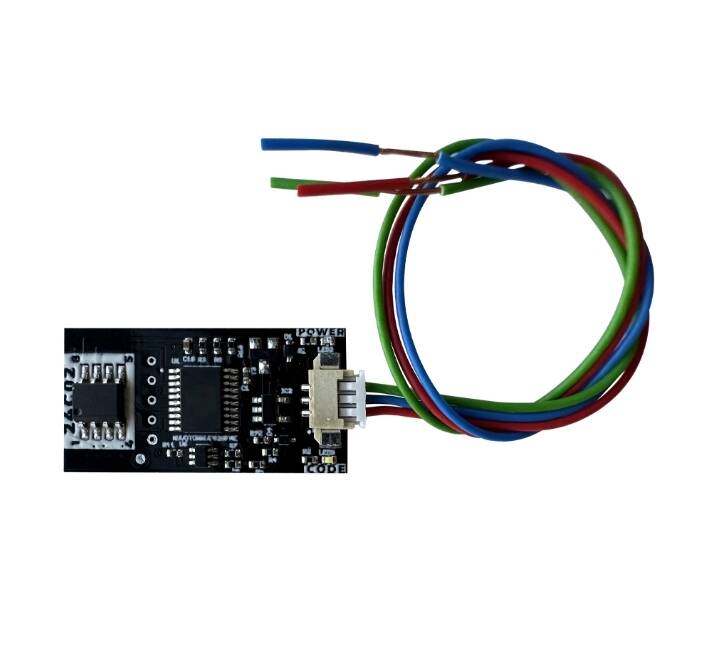

The AA9409 Hyundai–Kia IMMO OFF Emulator, designed by M4Key, is a compact and reliable solution for disabling the immobilizer function in Hyundai and Kia vehicles equipped with an IMMO Box system.

This emulator works with all transponder keys, making it ideal for situations where the original immobilizer system fails, the IMMO box is damaged, or key programming is not possible.

With wide ECU compatibility, stable performance, and simple wiring, it is one of the most efficient solutions for IMMO OFF applications.

---

🔧 Features

• System Type: IMMO OFF Emulator

• Supported Vehicles: Hyundai & Kia models using IMMO Box

• Manufacturer: M4Key

• Condition: Brand New

• Weight: 25 g

• GTIN: 8684990060460

• Key Compatibility: Works with ALL transponder keys

• Usage: For repairing immobilizer faults, lost keys, ECU replacements, or IMMO box failures

---

⚙️ Supported ECU Types

The AA9409 emulator supports a very wide range of Hyundai–Kia ECUs, including:

Diesel ECUs

• EDC15C7

• EDC16C39

• EDC17C08

• EDC17C53

• EDC17C57

• EDCCP14

Petrol ECUs

• M7.9.8

• MG7.9.8

• M17.9.21

• ME17.9.11.1

• ME17.9.21.1

• MED17.9.88

CPEG Series

• CPEGP 2.10.1

• CPGPSH 2.14.1

• CPEGD2.20.4

These ECU variants are widely used across Hyundai and Kia vehicles from the early 2000s to modern models with IMMO boxes.

---

🛠️ System Overview

In vehicles where the IMMO Box or transponder system fails, the engine ECU does not receive the correct authorization signal, preventing the engine from starting.

This emulator:

• Bypasses the immobilizer verification

• Allows the engine ECU to function normally

• Eliminates the need for expensive IMMO box replacement

• Works without additional key programming

It is ideal for automotive locksmiths, ECU repair technicians, and workshops.

---

🛠️ Installation Overview

⚠️ Installation should be performed by a professional automotive technician.

1. Identify the IMMO box wiring in the vehicle.

2. Disconnect the original IMMO signal line.

3. Connect the emulator according to the wiring color codes.

4. Secure the module inside the vehicle.

5. Start the car — the emulator takes over immobilizer communication.

No complex programming, no special tools required.

---

🚗 Vehicle Compatibility

Compatible with HYUNDAI & KIA models equipped with IMMO Box systems, including but not limited to:

• Older and mid-generation Hyundai vehicles using M7.x or ME17 ECUs

• Kia vehicles with EDC or CPEG ECU variants

• Vehicles suffering from IMMO box communication faults
