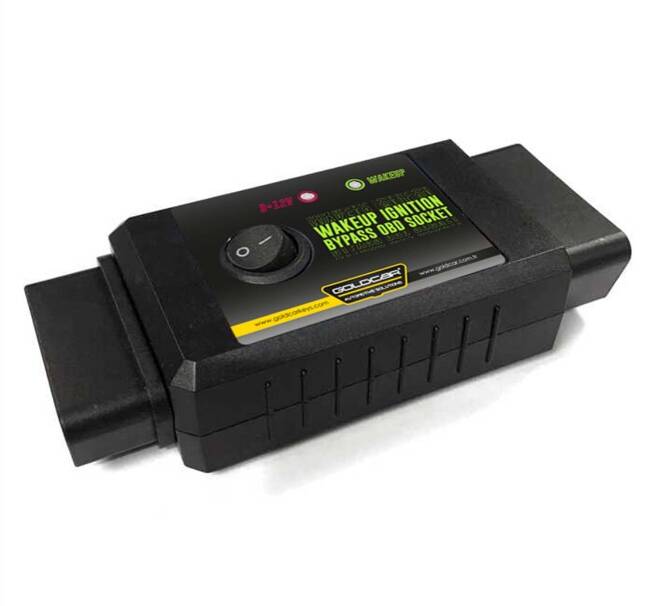

The Goldcar Wakeup Ignition Bypass OBD Socket allows you to force the ignition state (Terminal 15) ON directly through the OBD port.
This enables communication with ECUs even without a vehicle key, making it ideal for diagnostics, key programming, module coding and waking up control units on VAG, BMW, Mini, Land Rover and (via adapter) REN vehicles.

The set includes:

• OBD male + OBD female pass-through socket

• Ignition control switch

• LED indicators

• OBDSTAR-type REN adapter, enabling wake-up on REN platforms

Powered directly via OBD — no external power required.

---

🔧 Features

• System Type: Ignition Wake-Up / Terminal 15 Bypass

• Connector: OBD2 16-pin (male → female passthrough)

• Power: From OBD port (no external supply)

• Manual Switch: Ignition ON/OFF

• LEDs:

  • Red – Power

  • Green – Ignition Active

• CAN / K-Line / L-Line passthrough

• Compatible with OBD2 scanners, immobilizer programmers & ECU programmers

• Durable, compact design

• Plug & Play, no setup needed

---

⚙️ Technical Overview

Many vehicles require Terminal 15 (ignition) active before ECUs respond.
However:

• Some models do not wake up without a valid key

• Some modules enter deep-sleep mode

• Key programming may require forced ignition

This device:

• Forces ignition ON through the OBD port

• Wakes up sleeping ECUs

• Enables diagnostics and programming without key presence

• Maintains full data communication thanks to passthrough wiring

The included OBDSTAR-style REN adapter adds compatibility with specific REN systems.

---

🛠️ How to Use

1. Plug the Wakeup Bypass tool into the vehicle OBD port.

2. Connect your diagnostic or programming tool to the female OBD connector.

3. Flip the switch to activate ignition wake-up.

4. Observe Power & Ignition LEDs.

5. Perform normal diagnostics / coding / key programming.

---

🚗 Vehicle Compatibility

VAG (Volkswagen, Audi, Seat, Skoda)

• Audi: A1 (2011–2014), A3 (2003–2012)

• Seat: Alhambra (2001–2015), Ibiza (2002–2013), Leon (2008–2012), Mii (2012–2014)

• Škoda: Citigo (2012–2014), Fabia (2007–2012), Superb (2009–2012)

• Volkswagen models:
  Beetle, Caddy, Eos, Golf 5, Jetta, Passat CC, Polo, Tiguan, Touareg, Touran, Transporter, Up (model years as previously listed)

BMW / MINI

• BMW E-Series

• MINI One (2001–2006, 2007–2013)

Land Rover

• Multiple Land Rover platforms using standard OBD wake-up

REN (via OBDSTAR Adapter)

• Kangoo II (2008–2011)

• Other REN systems using OBDSTAR-style routing

---

❓ FAQ (Frequently Asked Questions)

Does it work with all VAG vehicles?
Supports most, but not 100%.

Does it require external power?
No — powered by OBD port.

Can I use it on other brands?
Yes: VAG, BMW, MINI, Land Rover, and REN (with adapter).

What do the LEDs indicate?
Red = Power
Green = Ignition Active

Is it compatible with all scanners?
Yes — works with all OBD2 diagnostic and key programming tools.

What is the REN adapter for?
It replaces the OBDSTAR REN-style adapter needed for 2016+ REN systems.
