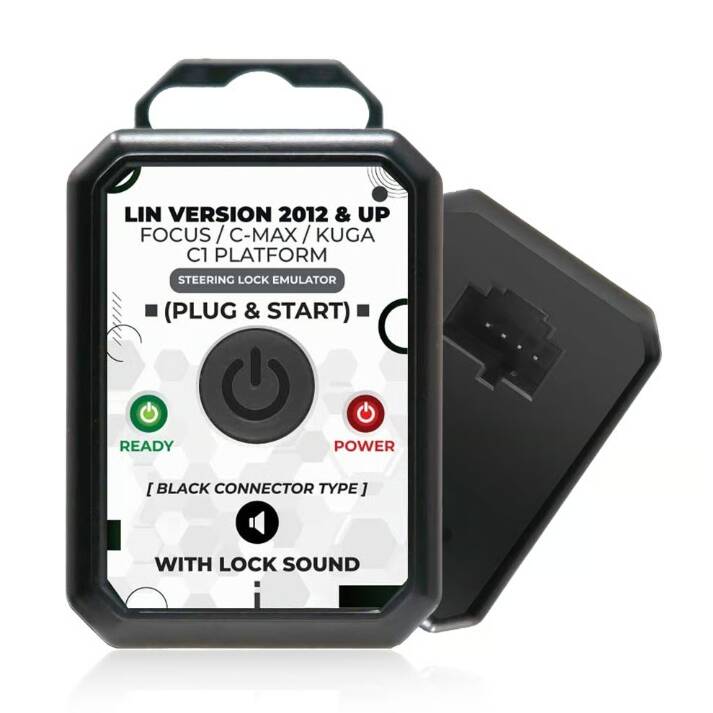

The Ford LIN-Version Steering Lock Emulator (MK7446) is designed as a direct replacement for the electronic steering column lock (ESCL) found in Ford Focus, C-Max, and Kuga models built on the C1 platform (2012 and up).
This emulator bypasses a faulty steering lock and restores full vehicle start functionality—no programming or coding required.

Ford vehicles frequently experience ESCL failures where the ignition turns on, but the steering lock does not release, preventing the engine from starting. Dealership repair requires ordering a new ESCL unit and programming it to the vehicle at high cost.

This MK3 emulator provides a fast, cost-effective solution. Simply connect it using the black connector type and start the car. It includes high-quality electronics, built-in lock/unlock sound, and LED indicators for easy diagnostic feedback.

---

🔧 Features

System Type: Steering Lock Emulator (ESCL / ELV)
Fitment: Ford Focus / C-Max / Kuga – LIN Version – 2012 & Up
Manufacturer: MK3
Product Number: MK7446
Operation: Plug & Start (No Programming Required)
Connector Type: Black Type (LIN Communication)
Lock Sound: Built-in electronic lock/unlock sound

LED Indicators:

• Green READY: Steering lock successfully bypassed – vehicle can start

• Red POWER: Lock signal error or fault

• Condition: Brand New

• Weight: 40 g

---

⚙️ Technical Overview

The OEM Ford ESCL module uses a LIN-based electronic motor to lock/unlock the steering column. Over time, the internal motor or position sensor fails, causing:

• Steering lock not releasing

• Ignition turning on but vehicle not starting

• Intermittent “Steering Lock Malfunction” warnings

When this fault occurs, the vehicle recognizes the key but refuses to crank.

Replacing the ESCL requires programming a new steering lock to the vehicle—time-consuming and expensive.
The MK3 LIN Version Emulator electronically replaces the steering lock without needing reprogramming.
It processes LIN commands from the BCM and replicates the OEM lock behavior with 100% compatibility.

---

🛠️ Installation Instructions

1. Turn off the ignition.

2. Disconnect the original ESCL steering lock connector.

3. Plug the vehicle’s black LIN connector into the MK7446 emulator.

4. Press the Start button and check LEDs:

   • Green LED: System bypassed and ready.

   • Red LED blinking: A stored fault must be cleared with a diagnostic tool.

5. Start the vehicle — the emulator takes over all ESCL functions.

---

🚗 Vehicle Compatibility

Ford (C1 Platform – LIN Version 2012 & Up)

• Ford Focus

• Ford C-Max

• Ford Kuga

Compatible with models using ESCL type: Av6N-3F880-Kx (black connector – LIN communication)
